Environmental Protection Artificial Sand Making Machine With Good Occlusion

  • 1
  • 2

Brand Name : BH

Model Number : BHVSI-7611

Certification : CE ISO SGS

Place of Origin : China

MOQ : 1 set

Payment Terms : L/C, T/T, D/A, D/P, Western Union, MoneyGram

Supply Ability : 20 sets per month

Delivery Time : 5-10 work days

Packaging Details : fixed by steel wire, small spare parts will be packed into wooden boxes.

Name : Environmental protection BH modern artificial sand making machine

Capacity : Center feeding:60-90t/h;Center and Ring feeding:120-180t/h

Condition : New

Weight : 7.5 ton

Power : 110-150kw

Voltage : 380v 50Hz (or as customized)

moisture content : about 4%

Warranty : 12 months

After-sales service provided : Engineers available to service machinery overseas

Contact Now

Environmental protection BH modern artificial sand making machine


Description:

Our BH environmental protection type dry sand making equipment is the world's advanced technology and technological process from Germany BHS company and so on.Combined with our company for many years engaged techology in the mixing industry equipment experience.We have developed the new type of high environmental protection dry sand crusher equipment.

Working principle:

Environmental Protection Artificial Sand Making Machine With Good Occlusion

Parameter:

ModelVSI-7611VSI-8518VSI-9526VSI-1140VSI-1145
Capacity (t/h)Center and Ring feeding120-180200-260300-380450-520490-600
Center feeding60-90100-130150-190225-260250-310
Max Feed Size (mm)Soft material<35<40<45<50<50
Hard material<30<35<40<45<45
Rotation speed (r/min)1700-18901520-16901360-15101180-13101180-1280
Power for double motor (kW)110-150180-220264-320400-440440-520
Overall Dimension L×W×H (mm)

3700*2150*
2100

4140*2280*
2425

4560*2447*
2778

5000*2700*
3300

5100*2790*
3320

Weight (t)7.510.5141627.5
Power Source380v 50Hz (or as customized)
Vibrating SensorInspect scope: 0.1-20mm/s adjusted continuously


Safety operation procedure:

1Before starting the machine, check whether the machine door of the sand making machine is closed. Open the door to stop the machine to prevent danger.
2The crusher is recommended to start with no load. After the operation is normal, the production can be cut off.
3The particle size of the material to be fed shall be in accordance with the requirements, and the equipment shall be damaged due to excessive assembly.
4If abnormal phenomena are found during the crushing process, stop the inspection and eliminate the fault before production.
5Regularly add lubricating oil to the rotating bearing parts.



Features:

  • Dry type mechanism sand has very good grain shape, it has the shape of a cube, it has good occlusion,can effectively improve the strength of mortar and concrete.
  • I's the uniform size distribution and gradation stability fineness modulus can be controlled and adjusted,without frequent replacement ratio.
  • There is a linear gradation , compared with natural sand can save a certain proportion of cement, reduce the production cost.

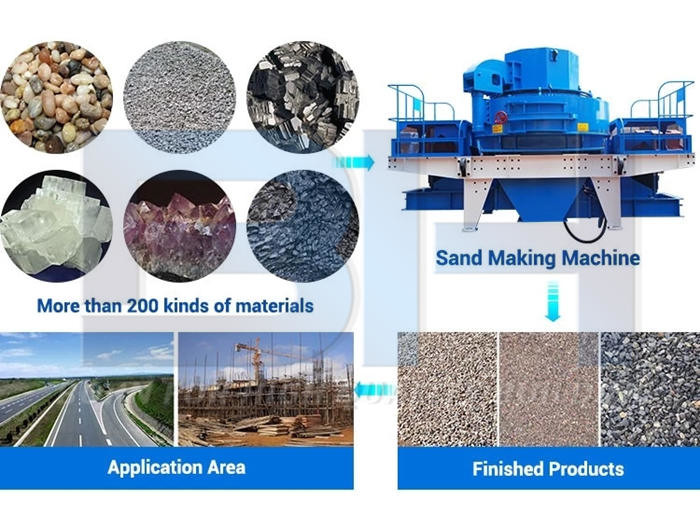

Application:

Environmental Protection Artificial Sand Making Machine With Good Occlusion
It is mainly used for the secondary and tertiary crushing of hard ore and rock in the industrial sectors of metallurgy, mining, chemical, cement, construction, refractory materials and ceramics. The crushing compressive strength is not more than 200MPa, and the feed size is 450-1000mm. The average discharge size is ≤ 5-8 mm.


Packaging & Delivery:

Environmental Protection Artificial Sand Making Machine With Good Occlusion

1. Assign special after-sales service personnel free of charge to arrive at the scene to guide customers to install and debug.
2. Free on-site training operators.
3. After the installation of the free complete sets of equipment, leave a technician to assist the customer on-site production free of charge until the user is satisfied.
